Go언어 GUI 아날로그 시계 만들기 with go-sciter

by Wilkyway 2020. 9. 24.
반응형

go-sciter를 이용하여 아날로그 시계를 구현해보도록 하겠습니다. go-sciter를 이용한 프로그램은 데이터처리를 위한 .go 파일과 뷰 제어를 위한 .html파일로 구성이 되어있는데요, 오늘은 아날로그 시계 만들기는 html에서 시계의 움직임까지 표현해주고, .go파일에서는 그냥 html을 로딩하는 역할만 하게됩니다.

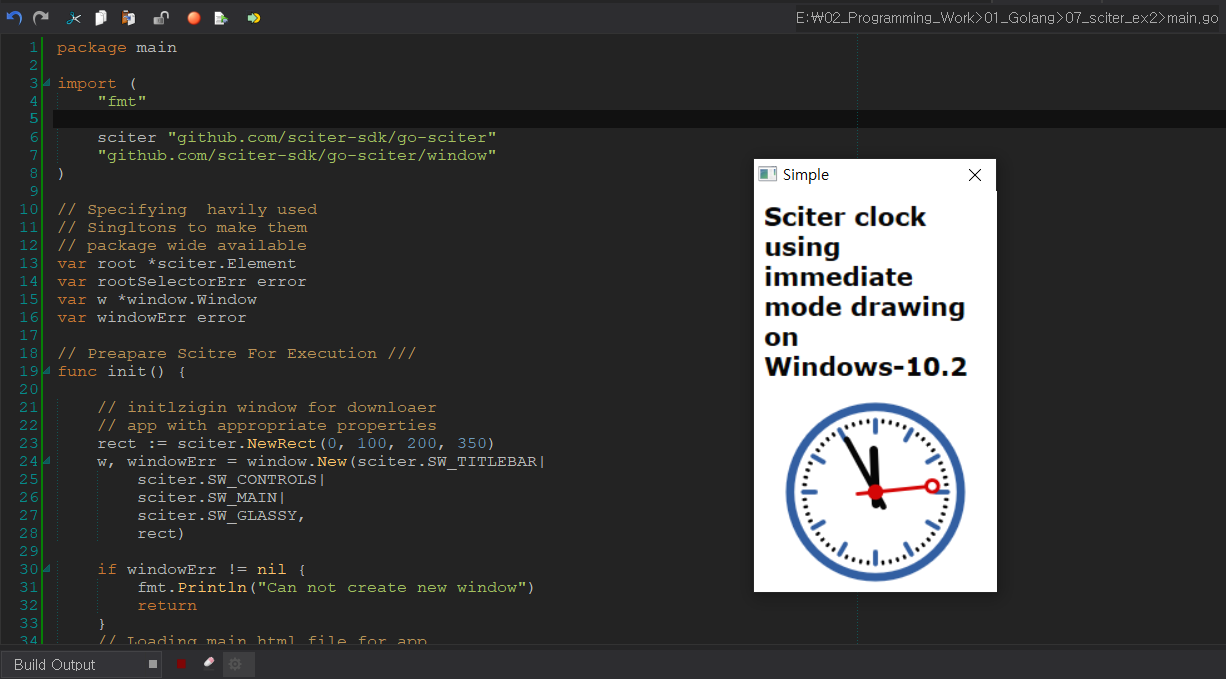

우선 결과물은 아래와 같이 나옵니다.







그럼, 소스는...



1. main.go (기본적인 html 로딩 포맷으로 기존과 동일)

package main

import (
	"fmt"

	sciter "github.com/sciter-sdk/go-sciter"
	"github.com/sciter-sdk/go-sciter/window"
)

// Specifying  havily used
// Singltons to make them
// package wide available
var root *sciter.Element
var rootSelectorErr error
var w *window.Window
var windowErr error

// Preapare Scitre For Execution ///
func init() {

	// initlzigin window for downloaer
	// app with appropriate properties
	rect := sciter.NewRect(0, 100, 200, 350)
	w, windowErr = window.New(sciter.SW_TITLEBAR|
		sciter.SW_CONTROLS|
		sciter.SW_MAIN|
		sciter.SW_GLASSY,
		rect)

	if windowErr != nil {
		fmt.Println("Can not create new window")
		return
	}
	// Loading main html file for app
	htloadErr := w.LoadFile("./main.html")
	if htloadErr != nil {
		fmt.Println("Can not load html in the screen", htloadErr.Error())
		return
	}

	// Initializng  Selector at global level as we  are going to need
	// it mostly and as it is
	root, rootSelectorErr = w.GetRootElement()
	if rootSelectorErr != nil {
		fmt.Println("Can not select root element")
		return
	}

	// Set title of the appliaction window
	w.SetTitle("Simple")

}

// Preaprare Program for execution ///
func main() {

	w.Show()
	w.Run()

}



2.main.html

<html>
  <head>
    <title>Sciter2 clock</title>
    <style>

      div.clock {
        prototype:Clock;
        width:*;
        height:*;
        /*border:1px solid black;*/
      }

    </style>
    <script type="text/tiscript">

!function(){

  $(span#os).text = System.OS;

}();


class Clock: Behavior
{

  function attached() {
    this.paintContent = this.drawclock; // attaching draw handler to paintContent layer
    this.timer(300,::this.refresh());
  }

  function drawclock(gfx)
  {
    var (x,y,w,h) = this.box(#rectw);
    var scale = w < h? w / 300.0: h / 300.0;
    var now = new Date();
    gfx.save();
    gfx.translate(w/2.0,h/2.0);
    gfx.scale(scale,scale);
    gfx.rotate(-Math.PI/2);
    gfx.lineColor(color(0,0,0));
    gfx.lineWidth(8);
    gfx.lineCap = Graphics.CAP_ROUND;

    // Hour marks
    gfx.save();
    gfx.lineColor(color(0x32,0x5F,0xA2));
    for (var i in 12) {
      gfx.rotate(Math.PI/6);
      gfx.line(100,0,120,0);
    }
    gfx.restore();

    // Minute marks
    gfx.save();
    gfx.lineWidth(5);
    for (var i in 60) {
      if ( i % 5 != 0)
        gfx.line(117,0,120,0);
      gfx.rotate(Math.PI/30);
    }
    gfx.restore();

    var sec = now.second;
    var min = now.minute;
    var hr  = now.hour;
    hr = hr >= 12 ? hr-12 : hr;

    // write Hours
    gfx.save();
    gfx.rotate( hr*(Math.PI/6) + (Math.PI/360)*min + (Math.PI/21600)*sec )
    gfx.lineWidth(14);
    gfx.line(-20,0,70,0);
    gfx.restore();

    // write Minutes
    gfx.save();
    gfx.rotate( (Math.PI/30)*min + (Math.PI/1800)*sec )
    gfx.lineWidth(10);
    gfx.line(-28,0,100,0);
    gfx.restore();

    // Write seconds
    gfx.save();
    gfx.rotate(sec * Math.PI/30);
    gfx.lineColor(color(0xD4,0,0));
    gfx.fillColor(color(0xD4,0,0));
    gfx.lineWidth(6);
    gfx.line(-30,0,83,0);
    gfx.ellipse(0,0,10);

    gfx.noFill();
    gfx.ellipse(95,0,10);
    gfx.restore();

    // outline
    gfx.lineWidth(14);
    gfx.lineColor(color(0x32,0x5F,0xA2));
    gfx.ellipse(0,0,142);

    gfx.restore();
  }
}

    </script>
  </head>
<body>
  <h2>Sciter clock using immediate mode drawing on <span #os></span></h2>
  <div class="clock" ></div>

</body>
</html>

이전 포스팅에서 말씀드렸다시피 TIScript라는 걸 사용해서 시계를 구현하는데요, 자바스크립트랑 비슷한 것 같긴한데 잘 모르겠는게 좀 있네요. 사실 자바스크립트도 잘 알지는 못하니... 좀 더 알아봐야겠습니다.



오늘은 이만~
