오늘은 아래 유튜브 영상의 데스크탑 어플리케이션을 구현해보겠습니다.
https://www.youtube.com/watch?v=sgEhK3mbDYo
1. 라이브러리 설치
이번 영상에서는 Material Design과 LiveCharts를 사용합니다. 아래의 명령으로 Package를 설치해줍니다.
dotnet add package MaterialDesignThemes --version 4.2.1 // material Design 설치
dotnet add package LiveCharts.Wpf --version 0.9.7 // live chart 설치또는 Nuget GUI Manager 를 설치 후

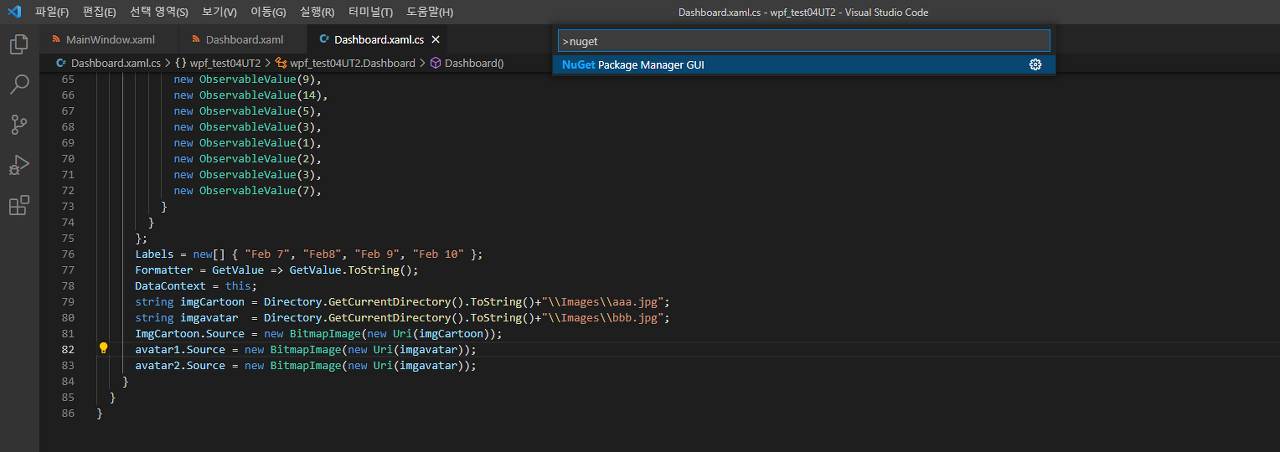

Shift + Ctrl + P 로 명령창에서 Nuget 입력 시 나타나는 명령을 수행합니다.

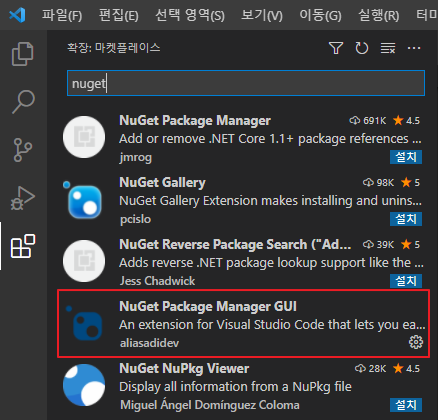

그리고 Nuget Package Manager에서 아래와 같이 설치해줍니다. Material Design Themes와 Livecharts.wpf로 검색되는 패키지를 설치해줍니다.
2. 라이브러리 적용
Material Design을 적용해야합니다. 적용하는 방법은 구글에서 < material design xaml >이라고 검색하면 나오는데, 여기 사이트를 참조하시면 되겠습니다. 그리고, 나중에 livechart에서 사용할 스타일도 정의해놓겠습니다.
<App.xaml>
<Application x:Class="wpf_test04UT1.App"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:local="clr-namespace:wpf_test04UT1"
StartupUri="MainWindow.xaml">
<Application.Resources>
<ResourceDictionary>
<ResourceDictionary.MergedDictionaries>
<ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Light.xaml" />
<ResourceDictionary Source="pack://application:,,,/MaterialDesignThemes.Wpf;component/Themes/MaterialDesignTheme.Defaults.xaml" />
<ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Primary/MaterialDesignColor.DeepPurple.xaml" />
<ResourceDictionary Source="pack://application:,,,/MaterialDesignColors;component/Themes/Recommended/Accent/MaterialDesignColor.Lime.xaml" />
</ResourceDictionary.MergedDictionaries>
</ResourceDictionary>
</Application.Resources>
</Application>
추가로, WS Simple Gallifreyan 폰트가 강좌 중간에 필요합니다. 적당히 다운받아 사용 가능한데, 이번엔 패스하겠습니다.
3. 구현
<MainWindow.xaml>
<Window x:Class="wpf_test04UT1.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:materialDesign="http://materialdesigninxaml.net/winfx/xaml/themes"
xmlns:MetroChart="clr-namespace:De.TorstenMandelkow.MetroChart;assembly=De.TorstenMandelkow.MetroChart"
xmlns:local="clr-namespace:wpf_test04UT1"
mc:Ignorable="d"
Title="MainWindow" Height="800" Width="1024"
WindowStyle="None">
<Grid>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="200" />
<ColumnDefinition Width="*" />
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="30"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<Grid Grid.Column="1" Grid.Row="1" Background="#FFE6E6E6">
<ScrollViewer>
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="200"/>
<RowDefinition Height="*"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="1*"/>
<ColumnDefinition Width="1*"/>
<ColumnDefinition Width="1*"/>
</Grid.ColumnDefinitions>
<Grid Grid.Column="0">
<Rectangle Height="120" Margin="20" Fill="White" RadiusY="10" RadiusX="10">
<Rectangle.Effect>
<DropShadowEffect BlurRadius="20"/>
</Rectangle.Effect>
</Rectangle>
<Grid Margin="25" Height="120">
<Grid Width="35" Height="50" Background="#FFFFAF24" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="20 0">
<Grid.Effect>
<DropShadowEffect BlurRadius="20"/>
</Grid.Effect>
<materialDesign:PackIcon Kind="ContentCopy" HorizontalAlignment="Center" VerticalAlignment="Bottom" Margin="5" Foreground="White" Width="20" Height="20"/>
</Grid>
<TextBlock Text="Espaco Usado" HorizontalAlignment="Right" FontFamily="Champagne & Limousines" Margin="5" VerticalAlignment="Top" Foreground="Gray"/>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Right" VerticalAlignment="Center" Margin="10 20">
<TextBlock Text="49/50" FontFamily="Champagne & Limousines" VerticalAlignment="Center" Foreground="Gray" FontSize="50"/>
<TextBlock Text="GB" FontFamily="Champagne & Limousines" Margin="0 5" VerticalAlignment="Bottom" Foreground="Gray" FontSize="20" />
</StackPanel>
<StackPanel Orientation="Horizontal" VerticalAlignment="Bottom" Margin="20" Cursor="Hand">
<materialDesign:PackIcon Kind="AlertOutline" Foreground="Red" Width="10" Height="10" VerticalAlignment="Center" Margin="5 0"/>
<TextBlock Text="AAdquirir mais espaco" FontSize="10" Foreground="#FF8522BD"/>
</StackPanel>
</Grid>
</Grid>
<Grid Grid.Column="1">
<Rectangle Height="120" Margin="20" Fill="White" RadiusY="10" RadiusX="10">
<Rectangle.Effect>
<DropShadowEffect BlurRadius="20"/>
</Rectangle.Effect>
</Rectangle>
<Grid Margin="25" Height="120">
<Grid Width="35" Height="50" Background="#FF41A43C" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="20 0">
<Grid.Effect>
<DropShadowEffect BlurRadius="20"/>
</Grid.Effect>
<materialDesign:PackIcon Kind="Store" HorizontalAlignment="Center" VerticalAlignment="Bottom" Margin="5" Foreground="White" Width="20" Height="20"/>
</Grid>
<TextBlock Text="Receita" HorizontalAlignment="Right" FontFamily="Champagne & Limousines" Margin="5" VerticalAlignment="Top" Foreground="Gray"/>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Right" VerticalAlignment="Center" Margin="10 30">
<TextBlock Text="R$" FontFamily="Champagne & Limousines" VerticalAlignment="Bottom" Margin="0 2" Foreground="Gray" FontSize="20"/>
<TextBlock Text="35.674,00" FontFamily="Champagne & Limousines" VerticalAlignment="Bottom" Foreground="Gray" FontSize="25" />
</StackPanel>
<StackPanel Orientation="Horizontal" VerticalAlignment="Bottom" Margin="20" Cursor="Hand">
<materialDesign:PackIcon Kind="Calendar" Foreground="Gray" Width="10" Height="10" VerticalAlignment="Center" Margin="5 0"/>
<TextBlock Text="Ultimas 24h" FontSize="10" Foreground="Gray"/>
</StackPanel>
</Grid>
</Grid>
<Grid Grid.Column="2">
<Rectangle Height="120" Margin="20" Fill="White" RadiusY="10" RadiusX="10">
<Rectangle.Effect>
<DropShadowEffect BlurRadius="20"/>
</Rectangle.Effect>
</Rectangle>
<Grid Margin="25" Height="120">
<Grid Width="35" Height="50" Background="#FFCF1F1F" HorizontalAlignment="Left" VerticalAlignment="Top" Margin="20 0">
<Grid.Effect>
<DropShadowEffect BlurRadius="20"/>
</Grid.Effect>
<materialDesign:PackIcon Kind="InformationOutline" HorizontalAlignment="Center" VerticalAlignment="Bottom" Margin="5" Foreground="White" Width="20" Height="20"/>
</Grid>
<TextBlock Text="Erros Corrigidos" HorizontalAlignment="Right" FontFamily="Champagne & Limousines" Margin="5" VerticalAlignment="Top" Foreground="Gray"/>
<StackPanel Orientation="Horizontal" HorizontalAlignment="Right" VerticalAlignment="Center" Margin="10 30">
<TextBlock Text="75" FontFamily="Champagne & Limousines" VerticalAlignment="Center" Foreground="Gray" FontSize="40" />
</StackPanel>
<StackPanel Orientation="Horizontal" VerticalAlignment="Bottom" Margin="20" Cursor="Hand">
<materialDesign:PackIcon Kind="Github" FontSize="15" Foreground="Gray" Width="10" Height="10" VerticalAlignment="Center" Margin="5 0"/>
<TextBlock Text="Monitorado pelo Git Hub" FontSize="11" Foreground="Gray"/>
</StackPanel>
</Grid>
</Grid>
<Grid Grid.Row="1" Grid.RowSpan="2" Grid.ColumnSpan="3" HorizontalAlignment="Center" Width="580" Height="550">
<Grid Background="White" Margin="20 50 20 20">
<Grid.OpacityMask>
<VisualBrush Visual="{ Binding ElementName=BorderG1 }"/>
</Grid.OpacityMask>
<Border x:Name="BorderG1" CornerRadius="5" Background="White" />
<StackPanel VerticalAlignment="Bottom">
<TextBlock Text="Receita Diaria" FontFamily="Champagne & Limousines" Margin="20 10" VerticalAlignment="Bottom" Foreground="Gray" FontSize="30"/>
<StackPanel Orientation="Horizontal" Margin="20 5" >
<materialDesign:PackIcon Kind="ArrowUp" Foreground="Green" VerticalAlignment="Center"/>
<TextBlock Text="55%" FontFamily="Champagne & Limousines" VerticalAlignment="Bottom" Foreground="Green" FontSize="15"/>
<TextBlock Text="Crescimento nas vendas hoje" Margin="20 0" FontFamily="Champagne & Limousines" VerticalAlignment="Bottom" Foreground="Gray" FontSize="20"/>
</StackPanel>
<StackPanel Orientation="Horizontal" Margin="10 5" >
<materialDesign:PackIcon Kind="Clock" Foreground="Gray" VerticalAlignment="Center"/>
<TextBlock Text="Atualizado a 4 minutos" Margin="5 0" FontFamily="Champagne & Limousines" VerticalAlignment="Bottom" Foreground="Gray" FontSize="20"/>
</StackPanel>
</StackPanel>
</Grid>
<Grid Margin="50 20 50 200">
<Grid.OpacityMask>
<VisualBrush Visual="{ Binding ElementName=BorderG2 }"/>
</Grid.OpacityMask>
<Border x:Name="BorderG2" CornerRadius="15" Background="#FF340051" />
<MetroChart:RadialGaugeChart Background="{x:Null}" ChartTitle="Consumo" ChartSubTitle="" Foreground="LightGray" HorizontalAlignment="Center">
<MetroChart:RadialGaugeChart.Series>
<MetroChart:ChartSeries
DisplayMember="Titulo"
ItemsSource="{Binding Path=Consumo}"
SeriesTitle="Consumo"
ValueMember="Porcentagem" />
</MetroChart:RadialGaugeChart.Series>
</MetroChart:RadialGaugeChart>
</Grid>
</Grid>
</Grid>
</ScrollViewer>
</Grid>
<Grid Grid.Row="1">
<Grid.Background>
<LinearGradientBrush EndPoint="0 1" StartPoint="0 0">
<GradientStop Offset="0.0" Color="#aeaeae" />
<GradientStop Offset="1.0" Color="#888" />
</LinearGradientBrush>
</Grid.Background>
<Grid.RowDefinitions>
<RowDefinition Height="100"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<Grid.Effect>
<DropShadowEffect BlurRadius="20"/>
</Grid.Effect>
<Grid Background="#ffa46fe4">
<TextBlock Text="DASHBOARD" HorizontalAlignment="Center" VerticalAlignment="Center" FontFamily="WS Simple Gallifreyan" Foreground="#FFBC96EA" FontSize="16"/>
</Grid>
<StackPanel Grid.Row="1">
<Button Margin="10" Background="#FF8522BD" BorderBrush="#FF8522BD">
<Grid Width="150">
<materialDesign:PackIcon Kind="ViewDashboard" VerticalAlignment="Center"/>
<TextBlock HorizontalAlignment="Center" Text="DASHBOARD"/>
</Grid>
</Button>
<Button Margin="10" Background="#FF8522BD" BorderBrush="#FF8522BD">
<Grid Width="150">
<materialDesign:PackIcon Kind="Account" VerticalAlignment="Center"/>
<TextBlock HorizontalAlignment="Center" Text="PROFILE"/>
</Grid>
</Button>
<Button Margin="10" Background="#FF8522BD" BorderBrush="#FF8522BD">
<Grid Width="150">
<materialDesign:PackIcon Kind="ContentPaste" VerticalAlignment="Center"/>
<TextBlock HorizontalAlignment="Center" Text="TABLES"/>
</Grid>
</Button>
<Button Margin="10" Background="#FF8522BD" BorderBrush="#FF8522BD">
<Grid Width="150">
<materialDesign:PackIcon Kind="TruckDelivery" VerticalAlignment="Center"/>
<TextBlock HorizontalAlignment="Center" Text="PROVIDERS"/>
</Grid>
</Button>
<Button Margin="10" Background="#FF8522BD" BorderBrush="#FF8522BD">
<Grid Width="150">
<materialDesign:PackIcon Kind="Settings" VerticalAlignment="Center"/>
<TextBlock HorizontalAlignment="Center" Text="CONFIGURATIONS"/>
</Grid>
</Button>
</StackPanel>
</Grid>
<Grid x:Name="GridBarraTitulo" Grid.ColumnSpan="2" Background="#FF8522BD" MouseDown="GridBarraTitulo_MouseDown">
<StackPanel Orientation="Horizontal" HorizontalAlignment="Right" Background="{x:Null}" Margin="10,0">
<Button Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" Width="25" Height="25" Background="{x:Null}" BorderBrush="{x:Null}" Foreground="White">
<materialDesign:PackIcon Kind="Bell"/>
</Button>
<Button Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" Width="25" Height="25" Background="{x:Null}" BorderBrush="{x:Null}" Foreground="White">
<materialDesign:PackIcon Kind="Account"/>
</Button>
<Button x:Name="ButtonFecher" Style="{StaticResource MaterialDesignFloatingActionMiniAccentButton}" Width="25" Height="25" Background="{x:Null}" BorderBrush="{x:Null}" Foreground="White" Click="ButtonFechar_Click">
<materialDesign:PackIcon Kind="Power"/>
</Button>
</StackPanel>
</Grid>
</Grid>
</Window>
<MainWindow.xaml.cs (데이터 주입부)>
using System.Windows;
using System.Collections.Generic;
namespace wpf_test04UT1
{
/// <summary>
/// Interaction logic for MainWindow.xaml
/// </summary>
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
Consumo consumo = new Consumo();
DataContext = new ConsumoViewModel(consumo);
}
private void ButtonFechar_Click(object sender, RoutedEventArgs e){
Application.Current.Shutdown();
}
private void GridBarraTitulo_MouseDown(object sender, RoutedEventArgs e){
DragMove();
}
}
internal class ConsumoViewModel{
public List<Consumo> Consumo { get; private set; }
public ConsumoViewModel(Consumo consumo){
Consumo = new List<Consumo>();
Consumo.Add(consumo);
}
}
internal class Consumo {
public string Titulo { get; private set; }
public int Porcentagem{ get; private set; }
public Consumo(){
Titulo = "Consum, Atual";
Porcentagem = CalcularPorcentagem();
}
private int CalcularPorcentagem(){
return 47; //
}
}
}
4. 결과
커맨드창에서
dotnet build
dotnet run하면 아래와 같이 이쁜 UI가 실행됩니다.
...이거 하느라...3시간 반 동영상보며 따라했네요..ㅠㅠ. 그래도 이쁜 결과물이 나와줘서 뿌듯합니다.
~~~끝~~~
